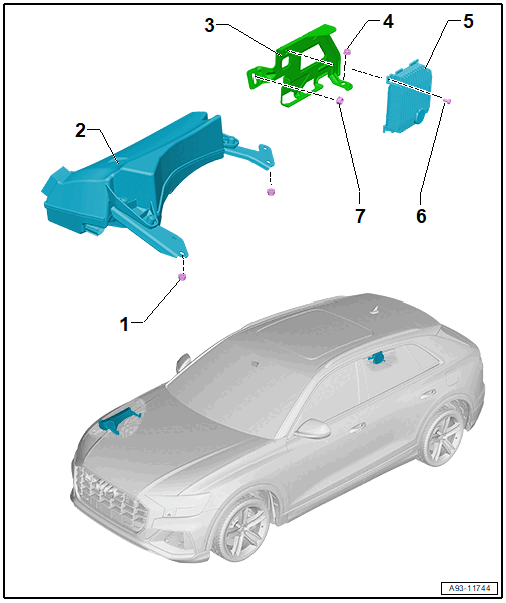

Component Location Overview - Driving Noise/Engine Noise
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 6 Nm
- Quantity: 4
- Engine Sound Generator Actuator 1 -R257-
- Component location: on the right longitudinal member
- Removing and Installing. Refer to Engine Sound Generator Actuator 1 -R257-, REMOVING AND INSTALLING .
- Bracket
- For Engine Sound Generator Control Module -J943-
- Nut
- 3.5 Nm
- Engine Sound Generator Control Module -J943-
- Component location: under the front passenger seat
- Removing and Installing. Refer to Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Nut
- 3.5 Nm
