USB Adapter For E-Tron Charging System

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

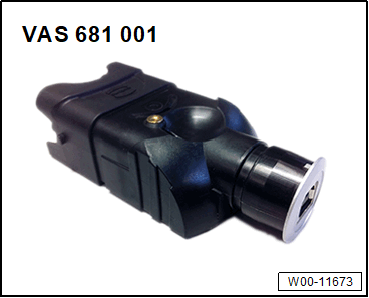

USB Adapter for E-Tron Charger System:VAS681001

Courtesy of AUDI OF AMERICA, LLC
USB-cable (USB 2.0 Type A/B), for example USB Connection Cable:VAS611001 , not illustrated

Diagnostics, Starting, Audi CSI (Charging System Interface)

-- Disconnect the display and control head from the power supply.

-- Disconnect the charging cable for the side of the vehicle.

-- Connect the USB Adapter for E-Tron Charger System:VAS681001

-- Connect the display and control head to the PC using a USB cable (USB 2.0 type A/B), for example USB Connection Cable:VAS611001 .

-- Reconnect the display and control head with the power supply.

-- The software is available from the importer and can be downloaded from either ServiceNet or the Dealer Portal, for example.

-- Start the application on the PC.

-- Connect the display and control head to the PC by pressing the Connect button.

Connection status = "green"

Possible Functions

Resetting PIN
Updating software
Reading, displaying and if necessary, deleting the DTC memory

Keyboard Shortcuts

F8 button = "Start/run command"
F11 button = "Back"
F12 button = "Next"
Esc button = "End application"

Ending Diagnostics, Audi CSI (Charging System Interface)

-- Press the Disconnect button to end the display and control head communication with the PC.

Connection status = "red"

-- Press the Esc button to end the application.

-- Disconnect the display and control head from the power supply.

-- Disconnect the USB Cable (USB 2.0 Type A/B), for example USB Connection Cable:VAS611001 from the PC.

-- Disconnect the USB Adapter for E-Tron Charger System:VAS681001 .

-- Connect the charging cable for the side of the vehicle.

-- Reconnect the display and control head with the power supply.
