Overview - Charging Socket

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

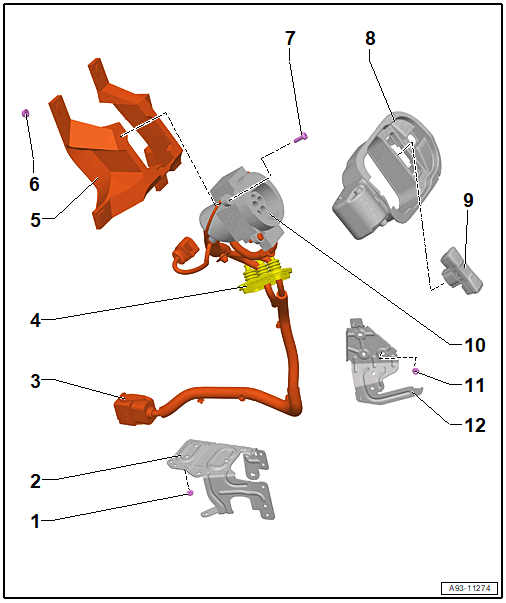

Fig 1: Exploded View Of Charging Socket, Vehicles From 08/13/2018

Courtesy of AUDI OF AMERICA, LLC

Nut
- 3.5 Nm
- Quantity: 3
Bracket
High-Voltage Cables
- To the High-Voltage Battery Charger 1 -AX4-
Cable Grommet
- Cannot be replaced separately
Mount
- For the High-Voltage Battery Charging Socket 1 -UX4-
Nut
- 6 Nm
- Quantity: 4
Bolt
- 9 Nm
- Quantity: 4
Electrical Connection Charge Door Unit
- Removing and Installing. Refer to Fuel Filler Door Unit
Battery Charging Button Module -EX32-
- With Charging Socket 1 LED Module -L263-, Immediate Charging Button -E766-, Charging Profile Selection Button -E808-
- Removing and Installing. Refer to Battery Charging Button Module -EX32-, REMOVING AND INSTALLING .
High-Voltage Battery Charging Socket 1 -UX4-
- With High-Voltage Charging Connector Lock 1 Adjuster -F498- and Charging Socket Temperature Sensor 1 -G853-
- Removing and Installing. Refer to High-Voltage Battery Charging Socket 1 -UX4-, REMOVING AND INSTALLING .
Nut
- 3.5 Nm
- Quantity: 3
Bracket
