Charging System, Diagnosis

Special tools and workshop equipment required

• Diagnostic Adapter:VAS611009

Procedure

• On the "compact" charging system the diagnosis is possible using the Diagnostic Adapter:VAS611009  with ODIS self-sufficient service this means without vehicle diagnostic entry.
• Because the "compact" charging system involves an external component, no VIN can be read out during diagnostic entry and consequently there are some important notes to pay attention to.
• For the diagnostic entry on the "compact" charging system pay attention to the following described steps.

-- Disconnect the High-Voltage Charging System Control Head -E943- from the power supply.

-- Disconnect the charging cable for the side of the vehicle.

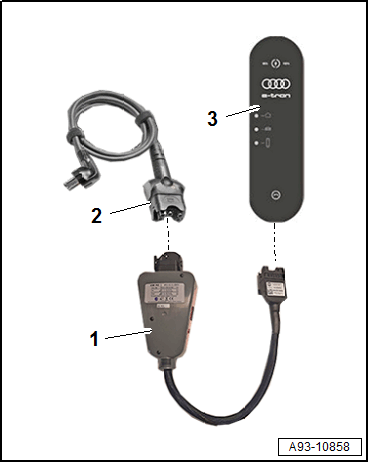

-- Connect the Diagnostic Adapter:VAS611009  -1- between Charging Cable for High-Voltage Charging System, Power Connection -P88- -2- and High-Voltage Charging System Control Head -E943- -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the Vehicle Diagnostic Tester on the Diagnostic Adapter:VAS611009  .

-- Connect the Diagnostic Adapter:VAS611009  to the power supply.

-- Switch on the High-Voltage Charging System Control Head -E943-.

Depending on the ODIS version instead of the VIN "AUDILADEKABELMINI" is entered when entering.

-- Select the ODIS Service  and start with Diagnostic  mode.

Courtesy of AUDI OF AMERICA, LLC

On scan tool display

1. VIN not found. Check ignition/diagnostic interface
2. Printer the Continue  button.

On scan tool display

Courtesy of AUDI OF AMERICA, LLC

1. An error occurs during the automatic identification of the vehicle. Please identify the vehicle manually.
2. Press the button OK  .

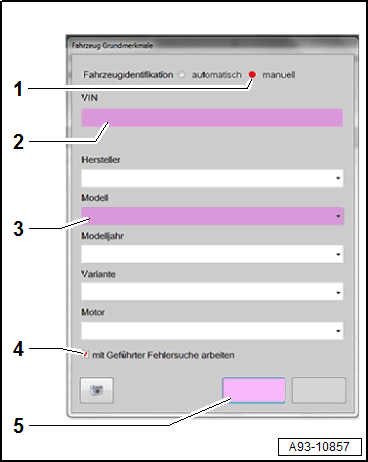

-- In the "vehicle identification" line:

Courtesy of AUDI OF AMERICA, LLC

1. "manually" activation

-- Enter the following in the "VIN" lines:

2 -

"AUDILADEKABELMINI (Audi mini charge cable)"

-- If in the line "manufacturer line" the brand is not filled in, select "Audi".

-- Enter the following in the "model" lines:

3 -

"All external components"

-- Ignore "model year", "version", "engine lines".

-- Check the line "procedure with Guided Fault Finding" :

4 -

Must be activated

-- To continue:

5 -

Press Accept

-- If possible, enter the VIN of the vehicle -arrow- with which the customer of the affected "compact" charging system is used.

Courtesy of AUDI OF AMERICA, LLC

-- Perform the entered test programs in the test plan.
