Battery Charging Button Module -EX32-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

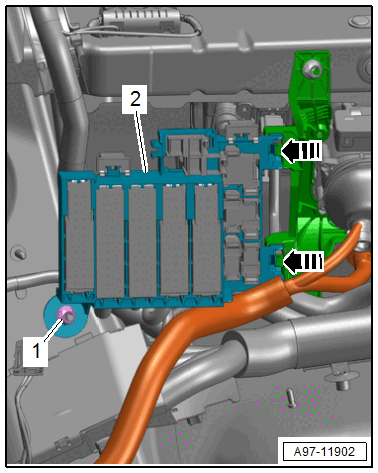

-- Remove the nut -1-.
-- Release the retainers in direction of -arrows-.
-- Remove fuse panel F -2- to the right.

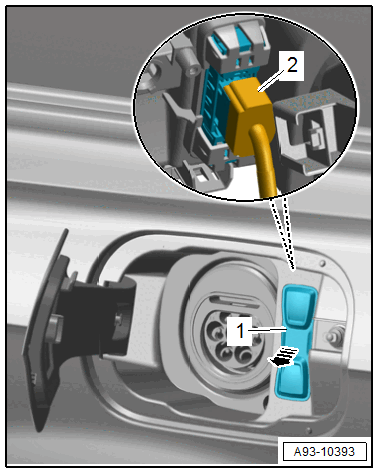

-- Disconnect the connector -2-.
-- Open the cover of the charge door unit.
-- Pry out the Battery Charging Button Module -EX32- -1- from the mount -arrow- and remove.
