Front Parking Lock Emergency Release Cable, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
There is a risk of an accident from the vehicle starting to roll.
- Pull the parking brake button to activate the electro-mechanical parking brake.
-- Remove the tunnel crossmember. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
Vehicles with a 3.0L TFSI Engine

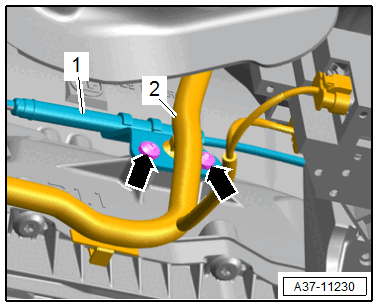

-- Remove the bolts -arrows-.
-- Free up the wire and push the bracket -2- with the connector to the side.
-- Remove the front parking lock emergency release cable -1-.
Vehicles with 3.0L TDI Engine
-- If equipped, remove the rear EGR cooler. Refer to the appropriate Exhaust System article .
-- Free up the wiring harness -2-.
-- Remove the bolts -arrows- and remove the front parking lock emergency release cable -1-.
