ATF Lines, Removing And Installing, AUDI Q7 From Product Improvement, AUDI Q8: Notes
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit:SMN372500
- Compressed air gun, commercially available
- Protective Eyewear
Removing and Installing
NOTE:
Seal the open lines and connections with clean plugs from the :VAS6122 .
Replace the O-rings after removal.
Check the ATF level after removing and Installing ATF lines. Refer to ATF LEVEL, CHECKING .
-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
-- Disconnect the ATF lines -arrows-. Refer to Figure.

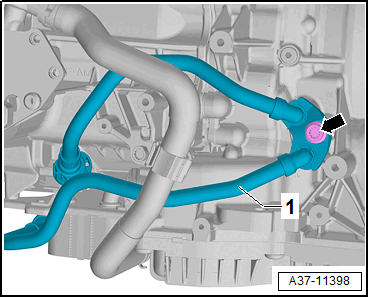

-- Remove the bolt -arrow-.
-- Remove the ATF line -1- from the transmission
CAUTION:
Risk of damaging the transmission.
- Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
- The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.
