ATF Cooler, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
NOTE:
Secure all hose connections with hose clamps corresponding to series production. Refer to the Parts Information.

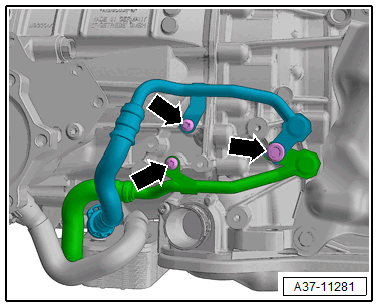

Vehicles with Bolts -left arrows- on the ATF Lines
-- Loosen all three bolts from the ATF lines -arrows-, but do not remove.
CAUTION:
The ATF cooler can be damaged by ATF lines installed under stress.
- By loosening the bolts tension is created in the ATF lines.
-- Connect the ATF line all the way and secure using the clips.
-- Re-tighten the bolts -arrows- to the tightening specification.
Continuation for All Vehicles
-- Connect the ATF line all the way and secure using the clips.
- Any leaking ATF lines must be replaced.
- Replace bent or stretched clips.
- The clips must be secure.
-- Check the ATF level. Refer to ATF LEVEL, CHECKING .
