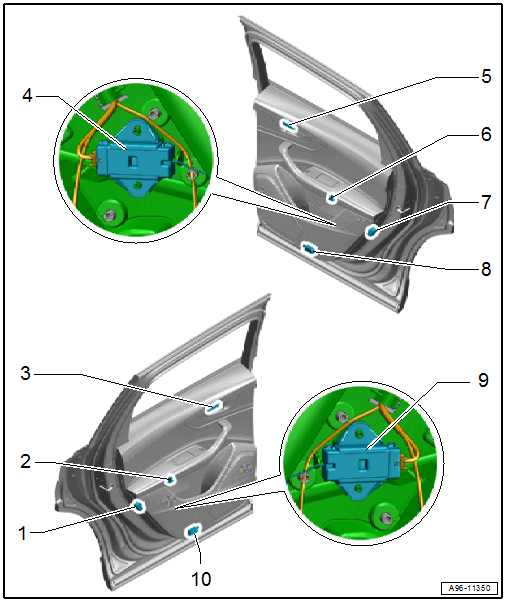

Component Location Overview - Rear Door Lamps
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Rear Door Warning Lamp -W90-
Driver Side Door Warning Reflector
- 12 V, 5W
- Removing and Installing. Refer to Driver Side Rear Door Warning Lamp -W90- /Passenger Side Rear Door Warning Lamp -W91-, REMOVING AND INSTALLING .
- Left Rear Door Storage Compartment Illumination Lamp -L257-
- Removing and Installing. Refer to REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB, REMOVING AND INSTALLING .
- Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Right Rear Door Storage Compartment Illumination Control Module -J1042-
- Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Right Rear Door Storage Compartment Illumination Lamp -L258-
- Removing and Installing. Refer to REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB, REMOVING AND INSTALLING .
- Passenger Side Rear Door Warning Lamp -W91-
Front Passenger Side Door Warning Reflector
- 12 V, 5W
- Removing and Installing. Refer to Driver Side Rear Door Warning Lamp -W90- /Passenger Side Rear Door Warning Lamp -W91-, REMOVING AND INSTALLING .
- Passenger Side Rear Entry Lamp -W84-
- Removing and Installing. Refer to Driver Side Rear Entry Lamp -W83- /Passenger Side Rear Entry Lamp -W84-, REMOVING AND INSTALLING .
- Left Rear Door Storage Compartment Illumination Control Module -J1041-
- Driver Side Rear Entry Lamp -W83-
- Removing and Installing. Refer to Driver Side Rear Entry Lamp -W83- /Passenger Side Rear Entry Lamp -W84-, REMOVING AND INSTALLING .
