Left Third Row Seat Backrest Adjustment Button -E565- /Right Third Row Seat Backrest Adjustment Button - E549-, REMOVING AND INSTALLING, LEFT REAR DOOR: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the second row rear seat backrest forward. Refer to the appropriate Vehicles Service Information.

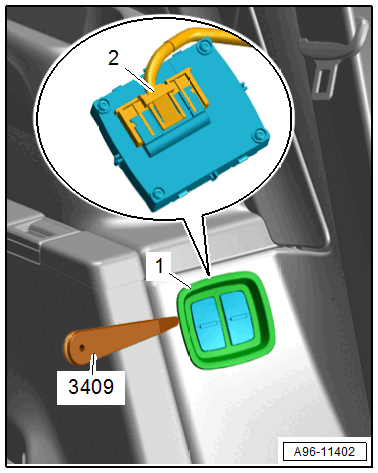

-- Pry out the backrest adjustment button -1- with the Trim Removal Wedge:3409 .
-- Disconnect the connector -2-.

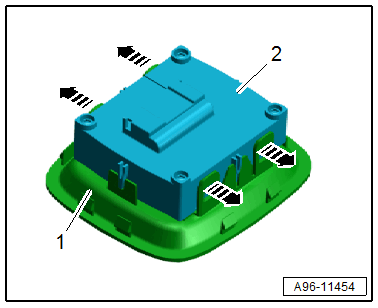

-- Release the retainers in direction of -arrows-.
-- Remove the backrest adjustment button -2- from the trim -1-.
