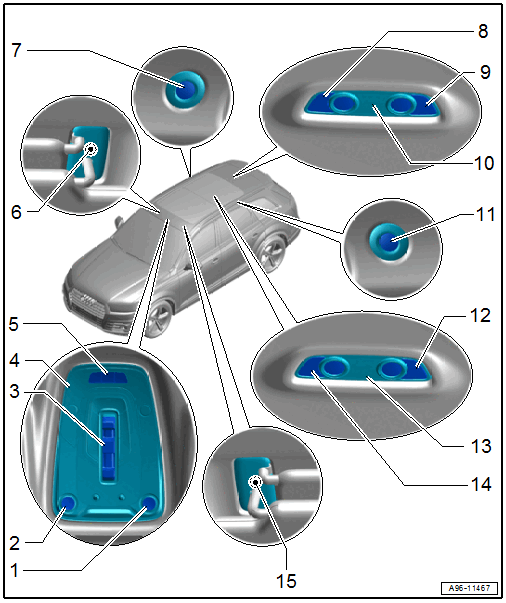

Component Location Overview - Controls In Roof Trim Panel
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Reading Lamp Button -E458-
- Integrated in the front roof module
- Driver Reading Lamp Button -E457-
- Integrated in the front roof module
- Sunroof Button -E325- with Roof Shade Button 1 -E584-
- Removing and Installing. Refer to Sunroof Button -E325-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Garage Door Opener Control Head -E284-
- Removing and Installing. Refer to Garage Door Opener Control Head -E284-, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- Integrated in the sun visor mount
- Cannot be replaced separately
- If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
- Rear Interior Lamp
- For versions with panorama sliding sunroof
- With Right Rear Reading Lamp Switch -E455-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH PANORAMA SLIDING SUNROOF .
- Right Third Row Reading Lamp Button -E789-
- Left Third Row Reading Lamp Button -E696-
- Rear Interior Lamp
- For versions with a third row of seats
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Rear Interior Lamp
- For versions with panorama sliding sunroof
- With Left Rear Reading Lamp Switch -E454-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH PANORAMA SLIDING SUNROOF .
- Right Rear Reading Lamp Switch -E455-
- Rear Interior Lamp
- For versions without panorama sliding sunroof, second row of seats
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Rear Reading Lamp Switch -E454-
- Driver Vanity Mirror Lamp Contact Switch -F147-
- Integrated in the sun visor mount
- Cannot be replaced separately
- If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .

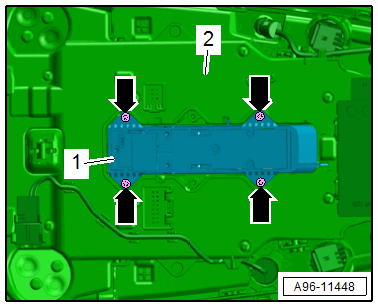

Sunroof ButtonE325 Tightening Specification:
-- Tighten the screws -arrows- to 0.65 Nm.
