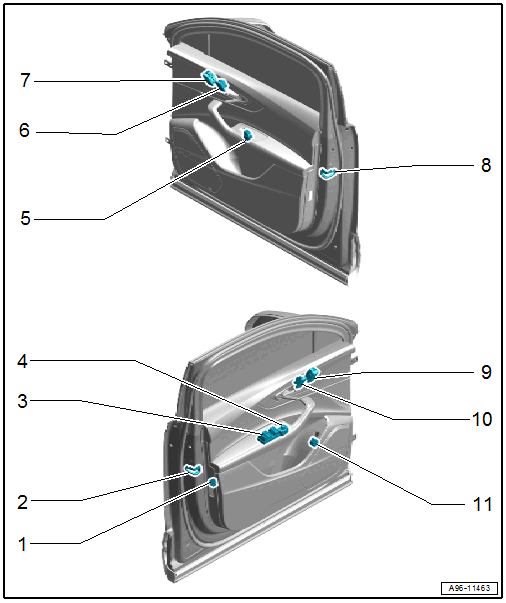

Component Location Overview - Controls In Front Doors
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Removing and Installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
- Driver Door Contact Switch -F2-
- Integrated in the door lock.
- Cannot be replaced separately
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- With the following integrated components
- Driver Power Window Button -E710-
- Driver Side Rear Power Window Button In Driver Door -E712-
- Passenger Side Rear Power Window Button In Driver Door -E714-
- Front Passenger Power Window Button in Driver Door -E715-
- The components cannot be replaced separately.
- Replace the control head if faulty
- Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
- With the following integrated components
- Mirror Adjusting Switch -E43- with Mirror Adjusting Switch -E48-
- Removing and Installing. Refer to Mirror Adjusting Switch -E43- /Folding Mirror Adjustment Switch -E168-, REMOVING AND INSTALLING .
- Front Passenger Power Window Button -E716-
- Removing and Installing. Refer to Front Passenger Door Window Regulator Switch -E107-, REMOVING AND INSTALLING .
- Front Passenger Interior Locking Button -E309-
- Removing and Installing. Refer to Driver Interior Locking Switch -E150- /Front Passenger Interior Locking Switch -E198-, REMOVING AND INSTALLING .
- Front Passenger Memory Seat Button -E340-
- Removing and Installing. Refer to Driver Seat Memory Settings Control Head -E464- /Front Passenger Seat Memory Settings Control Head -E465-, REMOVING AND INSTALLING .
- Front Passenger Door Contact Switch -F3-
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Integrated in the door lock.
- Cannot be replaced separately
- Driver Seat Memory Settings Control Head -E464-
- Removing and Installing. Refer to Driver Seat Memory Settings Control Head -E464- /Front Passenger Seat Memory Settings Control Head -E465-, REMOVING AND INSTALLING .
- Driver Interior Locking Button -E308-
- Removing and Installing. Refer to Driver Interior Locking Switch -E150- /Front Passenger Interior Locking Switch -E198-, REMOVING AND INSTALLING .
- Rear Lid Remote Release Button -E233-
- Fuel Filler Door Release Button -E319- Equipment Version
- Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
