BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493-: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the access/start authorization switch trim. Refer to ACCESS/START AUTHORIZATION SWITCH TRIM, REMOVING AND INSTALLING .

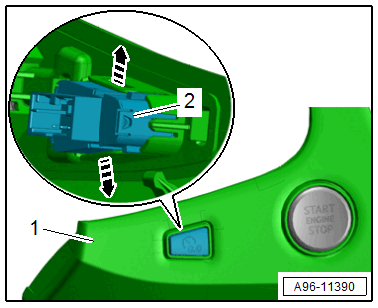

-- Release the retainers in direction of -arrows-.
-- Remove the button -2- from the mount in the access/start authorization switch trim -1-.
