Overview - Instrument Cluster, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

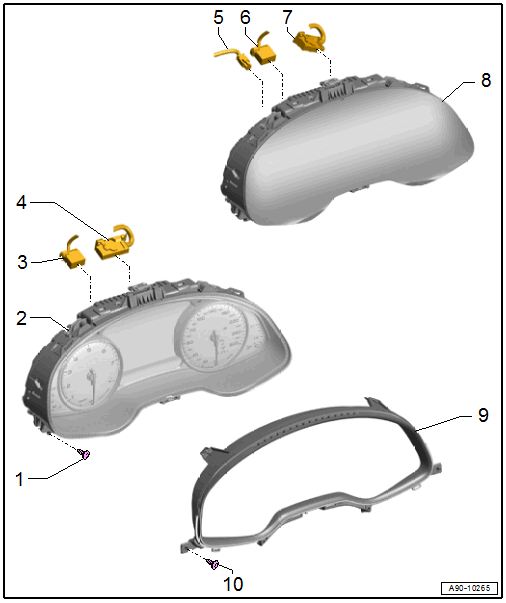

- Bolt
- 3 Nm
- Quantity: 2
- Instrument Cluster - Low
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If an LED for the indicator lamps or instrument cluster illumination is faulty, the instrument cluster must be replaced
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, LOW INSTRUMENT CLUSTER, BEFORE PRODUCT IMPROVEMENT .
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Connector
- For the instrument cluster
- Antenna Wire
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Connector
- For the instrument cluster
- Instrument Cluster - High
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER HIGH, BEFORE PRODUCT IMPROVEMENT .
- Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL .
- Quantity: 2
