INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER HIGH, BEFORE PRODUCT IMPROVEMENT: Removing

-- Remove the driver side instrument panel vent. Refer to OVERVIEW - INSTRUMENT PANEL .

-- Remove the access/start authorization switch trim. Refer to ACCESS/START AUTHORIZATION SWITCH TRIM, REMOVING AND INSTALLING .

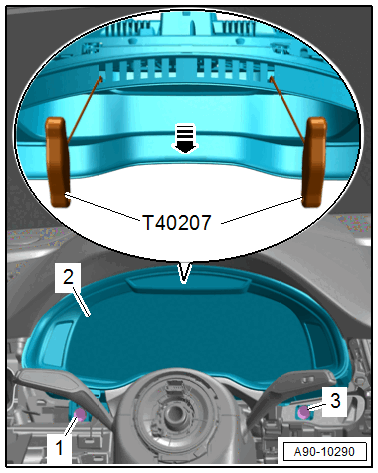

-- Remove the bolts -1 and 3-.

Courtesy of AUDI

-- Guide both Hook Tools:T40207  between the instrument panel and instrument cluster and attach at the outer vent openings as shown.

-- Using both Hook Tools:T40207  , carefully remove the instrument cluster -2- from the retainer in direction of -arrow- and tilt toward the rear.

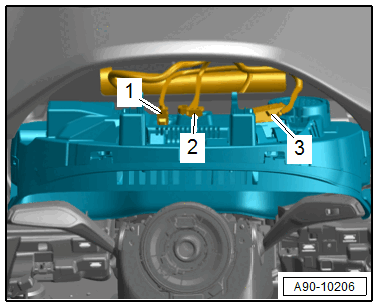

-- Disconnect the connectors:

Courtesy of AUDI

1. For the fiber-optic cable
2. For the antenna
3. For the instrument cluster

-- Seal the open wiring harness connector -2- of the fiber-optic cable with the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  -1-.

Courtesy of AUDI

TIP:

The protective cap prevents contamination of or mechanical damage to the front surface of the fiber-optic cable which would impair light transmission.

-- Remove the instrument cluster on the front passenger side between the steering wheel and the instrument panel.
