Service Station, Connecting With Adapter V.A.G 1785/10 To Refrigerant Circuit

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

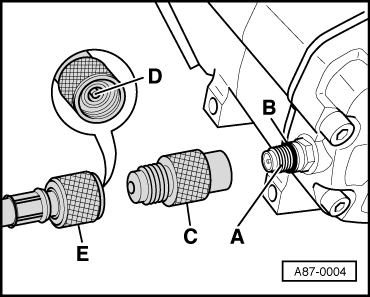

Fig 1: Connecting With Air Conditioning Adapter Set VAG 1785/10

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cap from the connection with valve -A- (at A/C compressor).

-- Attach the O-ring -B- to the connection (8.9 mm; 1.8 mm).

-- Screw the A/C Adapter Set - Adapter 10 V.A.G 1785/10 -C- onto the connection -A-.

-- Install the valve opener -D- with the appropriate seal in the charging hose connection.

NOTE:

The type of valve opener -D- and seals required depends on charging hose used (specific to manufacturer).

The quick-release coupling adapter is not required for connection on the low-pressure side of Audi vehicles.

Screw the charging hose -E- (to the service station) onto the A/C Adapter Set - Adapter 10:V.A.G 1785/10 .

NOTE:

To minimize the amount of air and moisture penetrating into the charging hoses and thus into the refrigerant circuit, the charging hoses should be connected together as shown.

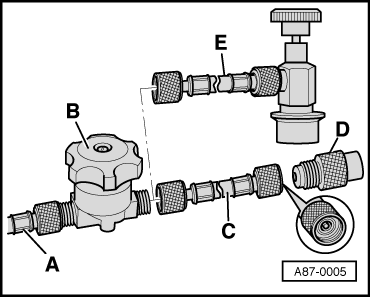

Fig 2: Identifying Charging Hoses Should Be Connected Together

Courtesy of AUDI OF AMERICA, LLC

A -

Filler Hose to A/C Service Station

B -

Manual Shut-Off Valve

C -

Charging Hose (short version) with Valve Opener for Connection to Adapter -D-

D -

A/C Adapter Set - Adapter 10:V.A.G 1785/10

E -

Filler hose (short version) with quick-release coupling adapter (for vehicles with quick-release coupling adapter on low-pressure side).

-- Perform the planned tests and measurements.
