Vacuum Pump, Removing And Installing, 2.0L TFSI Engine: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Check the vacuum lines for damage before assembling and replace if necessary.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the appropriate Electronic Parts Information.

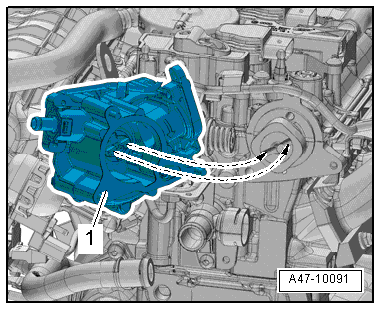

-- Turn the vacuum pump yoke -1- so it engages in the groove on the camshaft when positioning the vacuum pump in direction of -arrows-.

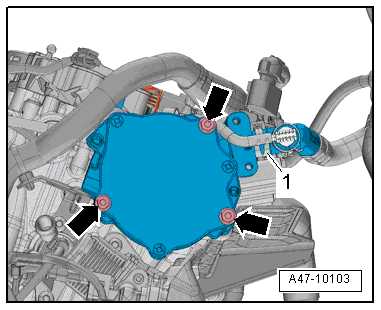

-- Install the vacuum hose with the hose clamp -1- connected.
-- Tighten the bolts -arrows-.
-- Install the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .
