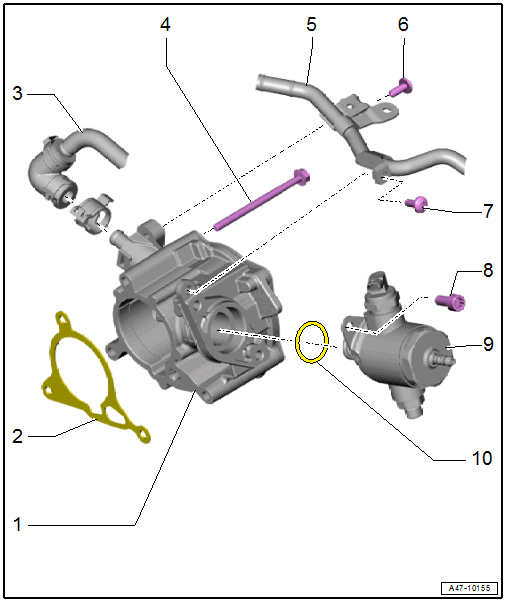

Overview - Vacuum Pump, 2.0L TFSI Engine
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Vacuum Pump
- Removing and Installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING .
- Seal
- Always replace after removing
- Vacuum Hose
- Bolt
- 8 Nm +180°
- Always replace after removing
- Vacuum Line
- From EVAP Canister Purge Regulator Valve 1 -N80- to EVAP canister
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - HIGH PRESSURE PUMP .
- High Pressure Pump
- Removing and Installing. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .
- O-Ring
- Always replace after removing
