Check Valve With Vacuum Line In Engine Compartment, Removing And Installing, 4.0L TFSI Engine: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

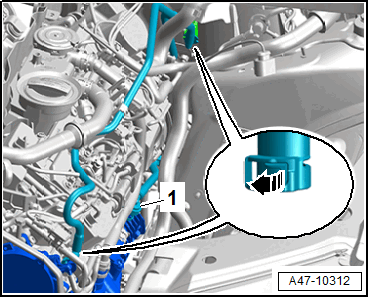

-- Release the retainer in direction of -arrow- and remove the vacuum line from the vacuum pump.
-- Carefully detach the vacuum line from the plenum chamber bulkhead, free up and remove (example illustration).
