Brake Booster Pressure Sensor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

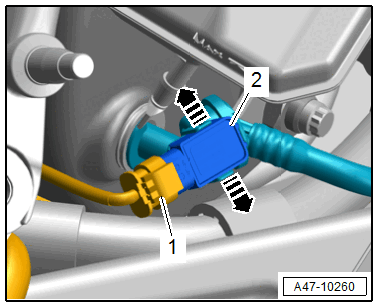

-- Disconnect the connector -1- for the Vacuum Sensor -G608-.
-- Release the retainers in direction of -arrows- and carefully remove the Vacuum Sensor -G608- -2-.
