Brake Caliper Piston, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the brake caliper. Refer to BRAKE CALIPER, REPLACING .

-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

-- Tension the brake caliper in a vise with protective covers over the jaws.

-- Make sure that the paint coat on the brake caliper is not damaged when removing the brake caliper pistons and the protective caps.

-- To prevent damage to the brake caliper paint coating, place a piece of rubber between the Piston Resetting Tool -T10145- and the brake caliper.

-- Only one brake caliper piston can be pressed out at a time.

CAUTION:

Leaking brake fluid increases the risk of injury.

Irritation and injury to the skin and eyes are possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Place a cloth over the brake caliper chamber to catch any spraying brake fluid. Place another cloth tightly around the compressed air gun nozzle on the brake caliper.

CAUTION:

Risk of injury due to sudden release of the brake caliper piston when pressing out.

- Never reach with the fingers into the brake caliper opening.

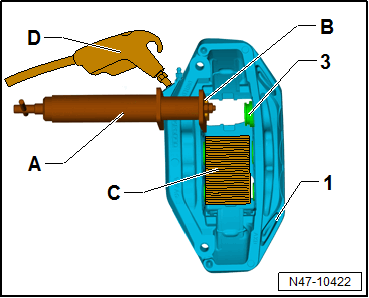

-- Use the Piston Resetting Tool -T10145- -A- to hold the opposite brake caliper piston in the brake caliper -1- as shown.

Courtesy of AUDI

-- Block the other brake caliper pistons using wooden blocks -C-, for example. Also place a protection -B- in front of the Piston Resetting Tool -T10145- so that the brake caliper piston does not become damaged when being pressed out.

-- Position the nozzle of the compressed air gun -D- at the hole for the brake hose. Use compressed air to push the brake caliper piston -3- out of the brake caliper.

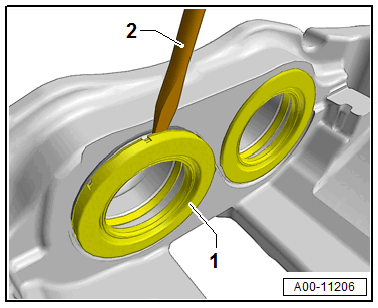

-- Carefully pry the protective cap -1- and the seal out of the brake caliper with the Removal Tool -VAS40338- -2- using gentle lever movements, and do not damage the groove for the protective cap in the brake caliper while doing so (example illustration).

Fig 1: Prying The Protective Caps

Courtesy of AUDI

-- Remove the seal -2- using the Release Tool:T10498 .

-- When removing, make sure that the cylinder surface is not damaged.

-- Repeat the procedure for the other brake caliper pistons.
