Component Location Overview - Abs/Esp
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

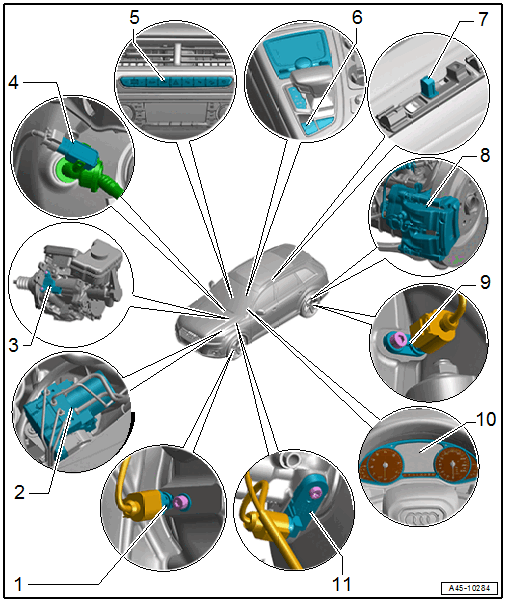

- Front Speed Sensor
- Left Front ABS Wheel Speed Sensor -G47-
- Right Front ABS Wheel Speed Sensor -G45-
- Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
- Hydraulic Control Unit
- With
- ABS Control Module -J104-
- ABS Hydraulic Unit -N55-
- The control module and the hydraulic unit can be separated
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- With
- Brake Pedal Position Sensor -G100-
- For vehicles with high-voltage system
- Component location: integrated in the electric Brake Booster -NX6-
- Refer to OVERVIEW - BRAKE BOOSTER/MASTER BRAKE CYLINDER, VEHICLE WITH HIGH-VOLTAGE SYSTEM
- Vacuum Sensor -G608-
- For vehicles without high-voltage system
- Refer to OVERVIEW - VACUUM PUMP, 3.0L TDI ENGINE (NOT FOR NORTH AMERICA MARKET)
- Switch Module in Instrument Panel, Center -EX22-
- With
- ASR/ESP Button -E256-
- Hill Descent Control Button -E618- (equipped on some models)
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- With
- Electromechanical Parking Brake Button -E538-
- Electromechanical Parking Brake Button -E538-
- -Auto Hold- Button -E540- (equipped on some models)
- Removing and installing. Refer to ELECTROMECHANICAL PARKING BRAKE BUTTON -E538- /-AUTO HOLD- BUTTON -E540-, REMOVING AND INSTALLING .
- Roof Rack Recognition Sensor -G625-
- Component location: in the roof railing
- Brake Pad Wear Sensor
- Left Front Brake Pad Wear Sensor -G34-
- Right Front Brake Pad Wear Sensor -G35-
- Left Rear Brake Pad Wear Sensor -G36-
- Right Rear Brake Pad Wear Sensor -G37-
- In the respective inner brake pad
- Refer to OVERVIEW - FRONT BRAKES
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster with Instrument Cluster Control Module -J285-
- With the following integrated indicator lamps:
- ABS Indicator Lamp -K47-
- Brake System Indicator Lamp -K118-
- Parking Brake Indicator Lamp -K139-
- The indicator lamps cannot be replaced separately
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- With the following integrated indicator lamps:
- Brake Lamp Switch -F-
- For vehicles without high-voltage system
- Component location: on the brake master cylinder
- Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER
