Ignition Coils, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the model, preliminary work may be required. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

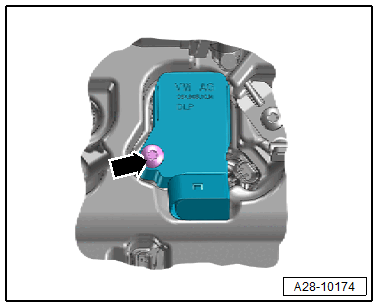

-- Remove the bolt -arrow- for the corresponding ignition coil.

Courtesy of AUDI OF AMERICA, LLC

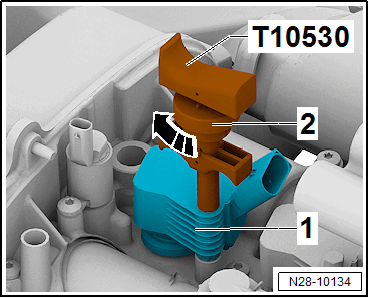

-- Insert the : T10530 in the ignition coil opening -1-.

Fig 1: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

-- Turn the knurled nut -2- clockwise in direction of -arrow- until the puller is clamped.

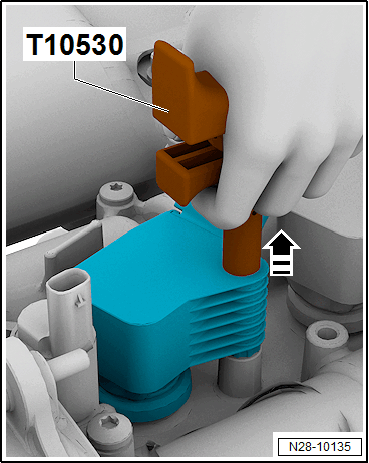

-- Remove the ignition coil carefully vertically in direction of -arrow- using the : T10530 .

Fig 2: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC
