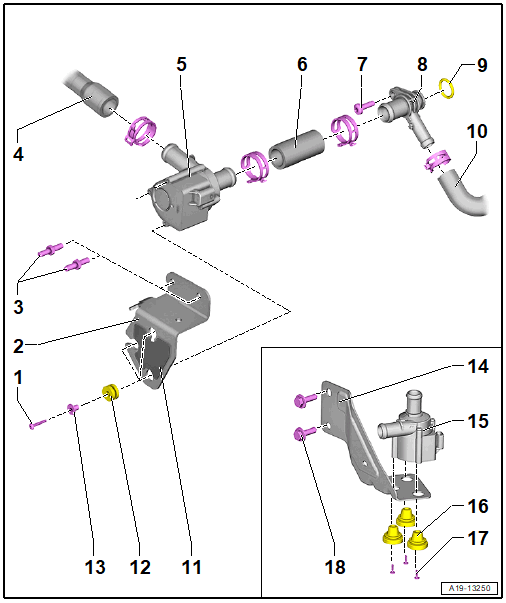

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2024 Audi SQ7 and 2023 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 3
- 1.5 Nm
- Bracket
- For After-Run Coolant Pump -V51-
- Double Bolts
- 9 Nm
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 9 Nm
- Connection
- There are different versions. Refer to the Parts Information.
- O-Ring
- Always replace after removing
- Not Installed
- Heat Shield Mat
- Rubber Bushing
- Quantity: 3
- Sleeve
- Quantity: 3
- Bracket
- For the Coolant Recirculation Pump -V50-
- Coolant Recirculation Pump -V50-
- Removing and installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Rubber Bushing
- Quantity: 3
- Bolt
- Quantity: 3
- 1.5 Nm
- Bolt
- Quantity: 2
- 20 Nm
