Knock Sensor 1 -G61-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7 and 2023 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to IGNITION SYSTEM .
-- For reinstallation, mark the installation position of the knock sensor.
-- Disconnect the connector -2-.

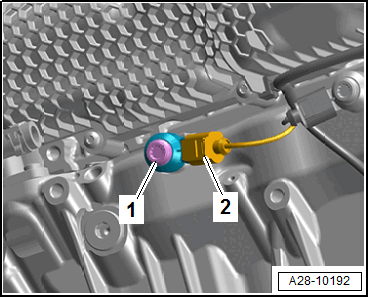

-- Remove the bolt -1- and then remove the knock sensor: (Shown on the Knock Sensor 1 -G61-).
