Camshaft Position Sensor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7 and 2023 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Depending on the model preliminary work may be required. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
-- If necessary, push the upper section of the noise insulation carefully to the side.

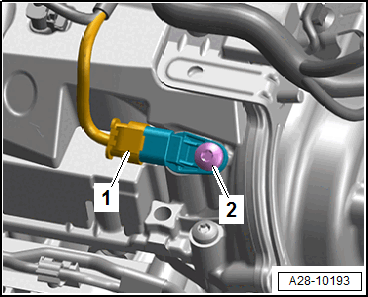

-- Remove the bolt -2- and the camshaft position sensor (shown on Camshaft Position Sensor 2 -G163-).
-- Disconnect the connector -1-.
