Overview - Exhaust Temperature Regulation. 3.0L Engine

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

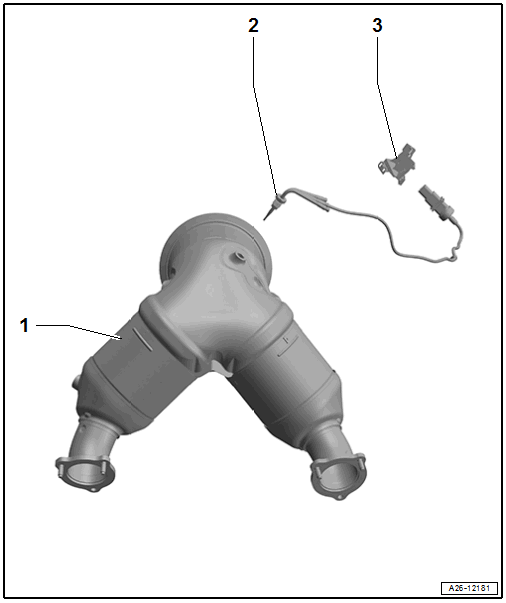

Fig 1: Exploded View Of Exhaust Temperature Regulation. 3.0L Engine

Courtesy of AUDI OF AMERICA, LLC

Catalytic Converter with Particulate Filter
- There are different versions. Refer to the Parts Information.
Exhaust Gas Temperature Sensor 3 -G495-
- 45 Nm
- Different installation positions depending on the model
- Removing and Installing:
  - Refer to Exhaust Gas Temperature Sensor 3 - G495-, REMOVING AND INSTALLING, 3.0L ENGINE, ALL VEHICLES WITH PARTICULATE FILTER EXCLUDING Q7/Q8
  - Refer to Exhaust Gas Temperature Sensor 3 - G495-, REMOVING AND INSTALLING, 3.0L ENGINE, VEHICLES WITH PARTICULATE FILTER, Q7/Q8
Bracket
- For the connector
