Radiator Shutter, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q7 and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Open the cover in direction of -arrow-, disconnect the connector -1- from the Radiator Shutter Motor -V544-. Free up the wire.
-- Remove the bolts -2- and move the mounting bracket with release cable for the hook operating lever -1- to the side.

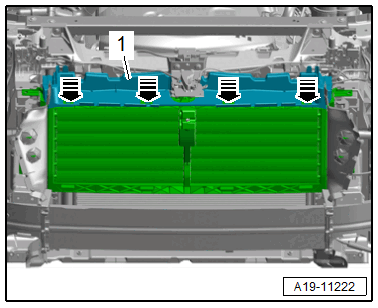

-- Open the catches in direction of -arrows- and remove the air duct -1-.

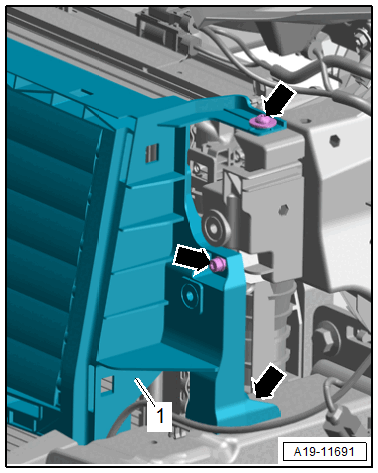

-- Remove the bolts -arrows-.
-- Free up the wiring harness.
-- Remove the radiator shutter -1-.
