Windshield Wiper Arms, Removing And Installing, Windshield Wipers With Integrated Washer Nozzles: Removing

-- Remove the service cover -1- on the plenum chamber cover -arrow-.

Courtesy of AUDI

-- Free up the washer fluid hoses.

-- Disconnect the connector -6-.

Courtesy of AUDI

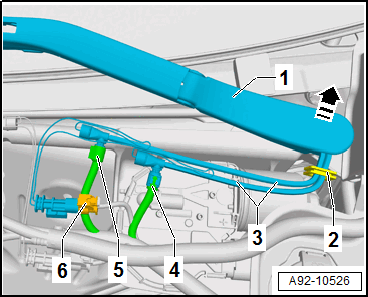

-- Release the retainers and disconnect the washer fluid hoses -4 and 5- at the connection points.

-- Free up the grommet -2- and the washer fluid hoses -3- with the connector on the plenum chamber cover.

-- Release the side catches, tilt the cap -1- upward -arrow-.

-- Press the washer fluid hoses -3- to the side slightly.

Courtesy of AUDI

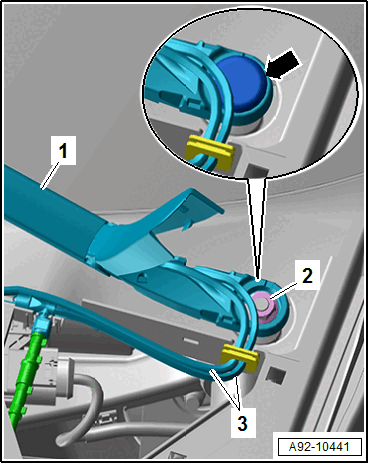

-- Shift the washer fluid hose to free it up.

-- Using a screwdriver, pry the cap -arrow- out of the windshield wiper arm -1-.

-- Remove the nut -2-.

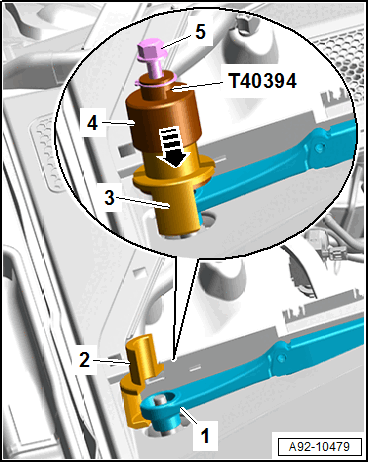

-- Position the hook -2- on the windshield wiper arm -1-.

Courtesy of AUDI

-- Position the Puller - Windshield Wiper:T40394  on the opposite side of the windshield wiper arm and latch the pivoting hook -3-.

-- Push the locking ring -4- downward -arrow-.

-- Turn the bolt -5- clockwise until the windshield wiper arm is removed from the windshield wiper axle.

-- Remove the windshield wiper arms.
