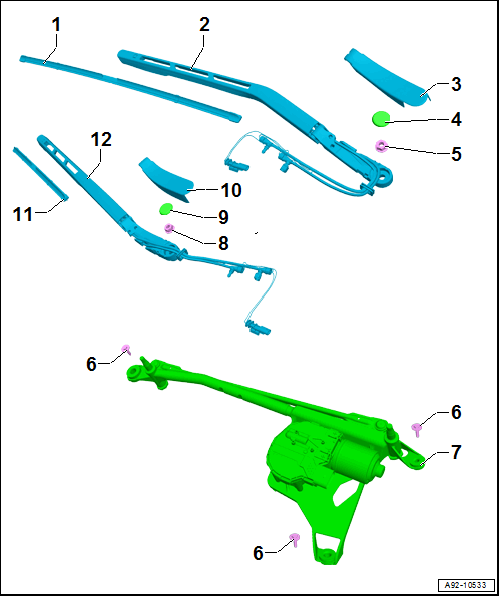

Overview - Windshield Wiper System, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING, WINDSHIELD WIPERS WITH INTEGRATED WASHER NOZZLES .
- Driver Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Cap
- Nut
- 32 Nm
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and Installing. Refer to Windshield Wiper Motor -V-, EMOVING AND INSTALLING .
- Nut
- 32 Nm
- Cap
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING, WINDSHIELD WIPERS WITH INTEGRATED WASHER NOZZLES .
- Front Passenger Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Windshield Wiper Motor - Tightening Specification and Sequence
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 3- | Install all the way by hand |
| 2. | -1 to 3- | 8 Nm |
