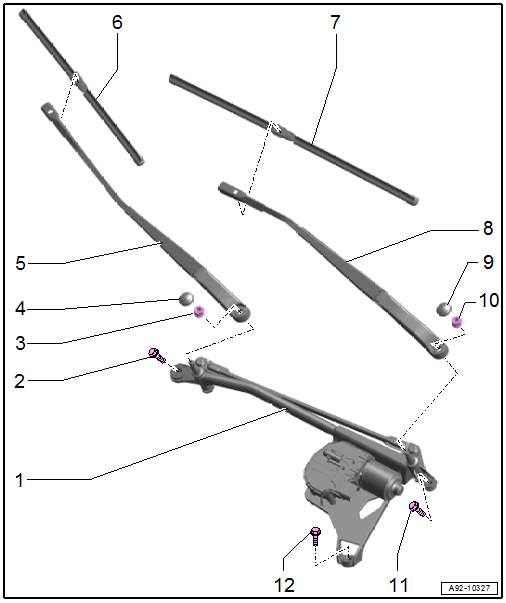

Overview - Windshield Wiper System, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and Installing. Refer to Windshield Wiper Motor -V-, EMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 2.
- Nut
- 32 Nm
- Cap
- Front Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Wiper Blade
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 32 Nm
- Bolt
- Tightening sequence. Refer to Fig 2.
- Bolt
- Tightening sequence. Refer to Fig 2.
Windshield Wiper Motor - Tightening Specification and Sequence
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 3- | Install all the way by hand |
| 2. | -1 to 3- | 8 Nm |
