Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the washer fluid reservoir until the windshield washer pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

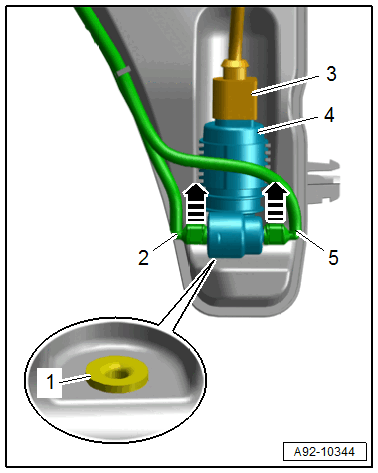

-- Disconnect the connector -3- using an Elbow Assembly Tool:T10118 .
-- Place a drip tray under the washer fluid reservoir.
-- Open the clips in direction of -arrows- and remove the washer fluid hoses -2 and 5- from the windshield washer pump -4-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
