Washer Fluid Reservoir, Removing And Installing, From Product Improvement: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .

-- Remove the left front wheel housing liner rear section. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

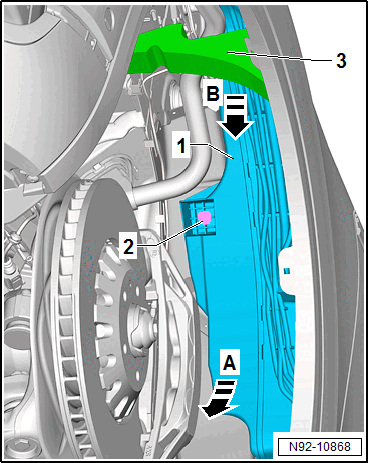

-- Remove the damper -3-.

-- Remove the bolt -2-.

-- Pivot the washer fluid reservoir -1- below toward the front in direction of -arrow A- and then and pull it downward in direction of -arrow B-.At the same time the lower and upper securing tabs are removed from the mounts.

-- If equipped, release the connector -5- and washer fluid hoses -6- for the Rear Window Washer Pump -V13- and remove.

Courtesy of AUDI

TIP:

To prevent mixing up washer fluid hose connections on the Rear Window Washer Pump -V13-, olor code the connections at pump and hose lines.

-- Release and disconnect the connectors -3, 4 and 8-.

-- Release and remove the washer fluid hoses -1- from the Windshield Washer Pump -V5-.

-- Release and remove the washer fluid hose -2- from the Headlamp Washer System Pump -V11-.

-- Free up the wires.

-- Remove the washer fluid reservoir -7-.
