Washer Fluid Reservoir Filler Neck, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

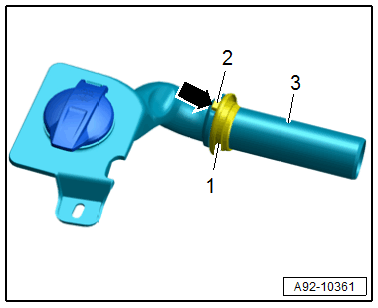

-- Slide the grommet -1- all the way onto the filler tube for the filler neck -3-.
- The tab -2- must fit into the opening -arrow- on the filler tube.
-- Insert the filler neck into the washer fluid reservoir.
-- Pay attention that the gasket is not crushed when sliding it in the washer fluid reservoir.
