Headlamp Washer System Washer Nozzle, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Vehicles with side auxiliary radiator: remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

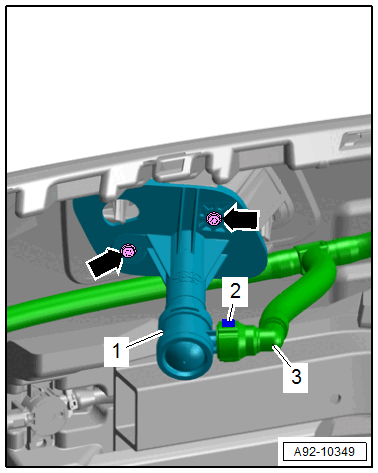

-- Remove the bolts -arrows-.
-- Remove the spray nozzle -1- toward the rear.
-- Place the drip tray under the washer nozzle.
-- Remove the washer fluid hose -3- by pressing the release buttons -2-.
-- Seal the hose coupling with clean plugs from the Engine Bung Set:VAS6122 .
