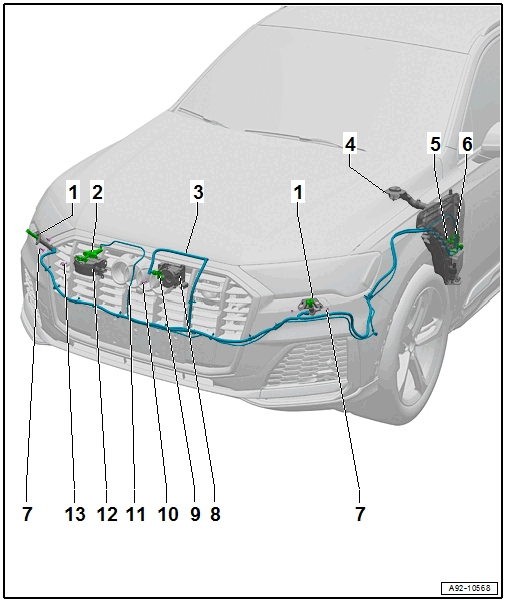

Overview - Headlamp Washer System, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Washer System Washer Nozzle
- Are already adjusted by the manufacturer and must not be adjusted after installation.
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE, REMOVING AND INSTALLING .
- Washer Nozzle for Laser Distance Regulation Control Module
- Removing and Installing. Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE, REMOVING AND INSTALLING .
- Washer Fluid Hose
- For headlamp washer system washer nozzles
- Equipped on some models
- For night vision system camera washer nozzle
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Headlamp Washer System Pump -V11-
- Removing and Installing. Refer to Headlamp Washer System Pump -V11-, EMOVING AND INSTALLING .
- Rear Window Washer Pump -V13-
- For laser distance regulation control module washer nozzle
- Black hose connection: on black connection
- Removing and Installing. Refer to Rear Window Washer Pump -V13-, EMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 2
- Night Vision System Camera -R212-
- Equipped on some models
- Night Vision System Camera -R212- Washer Nozzle
- Removing and Installing. Refer to Night Vision System Camera -R212- WASHER NOZZLE, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 2
- Washer Fluid Hose
- For laser distance regulation control module washer nozzle
- Laser Distance Regulation Control Module -J1122-
- Equipped on some models
- Bolt
- 2.5 Nm
- Quantity: 2
