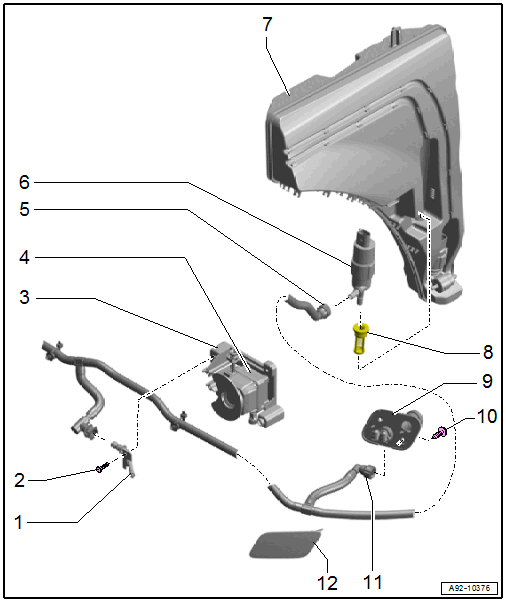

Overview - Headlamp Washer System, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Night Vision System Camera -R212- Washer Nozzle
- Removing and Installing. Refer to Night Vision System Camera -R212- WASHER NOZZLE, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 2
- Mount
- For the Night Vision System Camera -R212-
- Night Vision System Camera -R212-
- Washer Fluid Hose
- To the washer nozzles
- Headlamp Washer System Pump -V11-
- Removing and Installing. Refer to Headlamp Washer System Pump -V11-, EMOVING AND INSTALLING .
- Washer Fluid Reservoir
- Grommet
- For the Headlamp Washer System Pump -V11-
- Washer Nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE, REMOVING AND INSTALLING .
- Are already adjusted by the manufacturer and must not be adjusted after installation.
- Bolt
- 2.5 Nm
- Quantity: 2
- Washer Fluid Hose
- To the washer nozzles
- Cover
- For the headlamp washer system washer nozzle
