Headlamp Washer System Pump -V11-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

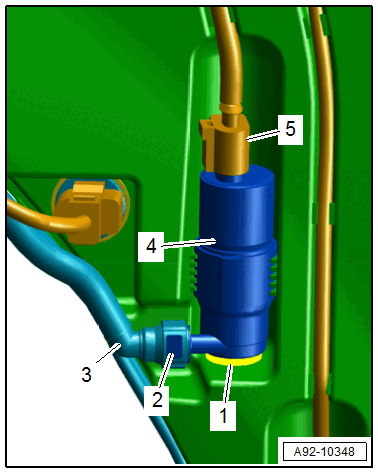

-- Remove the washer fluid reservoir until the headlamp washer system pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Disconnect the connector -5-.
-- Place a drip tray under the washer fluid reservoir.
-- Press the release button -2- and remove the washer fluid hose -3- from the headlamp washer system pump -4-.
-- Remove the headlamp washer system pump upward and out of the washer fluid reservoir.
