Rear Bonded Rubber Bushing For Rear Final Drive, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicles with active suspension: pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON VEHICLES WITH ACTIVE SUSPENSION .
-- Air suspension: remove the rear axle steering. Refer to REAR AXLE STEERING GEAR, REMOVING AND INSTALLING .
-- Remove the rear final drive. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
-- Remove the nuts -arrows-, and remove the cover -1- for the air supply unit.

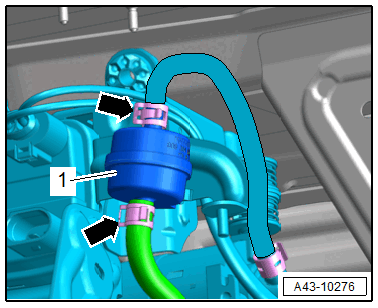

-- Unclip the air filter -1- from the bracket and push to the side with the hoses still connected -arrows-.

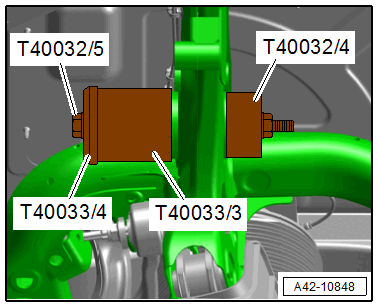

-- Install the Puller - Differential Bearing:T40032 and Rear Bushing Tool:T40033 on the bonded rubber bushing and on the subframe, as shown.
-- Remove the bonded rubber bushing from the subframe.
