Rear Bonded Rubber Bushing For Rear Final Drive, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

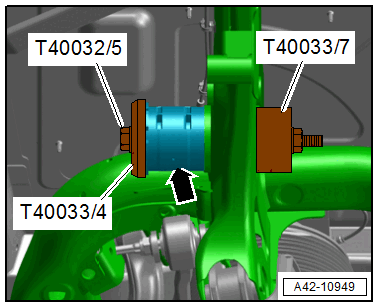

-- Install the Puller - Differential Bearing:T40032 and Rear Bushing Tool:T40033 on the bonded rubber bushing and on the subframe, as shown.
-- Install the bonded rubber bushing all the way in the subframe.
-- Install the rear axle steering. Refer to REAR AXLE STEERING GEAR, REMOVING AND INSTALLING .
