Shock Absorber Fork, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the coupling rod. Refer to COUPLING ROD, REMOVING AND INSTALLING .
-- Disconnect the connectors -1 and 2- for the shock absorber fork.
-- Push the bracket -3- with the brake hose to the side.

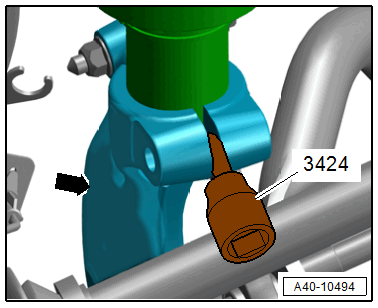

-- Insert the Spreader Tool:3424 into the slot in the shock absorber fork -arrow-.
CAUTION:
There is a risk of damaging the ball joint if force is used.
- Never press the joints in the control arm past the maximum articulation.
-- Remove the shock absorber fork downward from the shock absorber tube.
-- Carefully press the wheel bearing housing downward and remove the shock absorber fork.
