SUBFRAME CROSSBRACE, Removing And Installing: Removing
- Vehicles with active suspension: pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON VEHICLES WITH ACTIVE SUSPENSION .
-- Remove the noise insulations. Refer to OVERVIEW - NOISE INSULATION .
Equipment Versions with Side Transmission Mount:

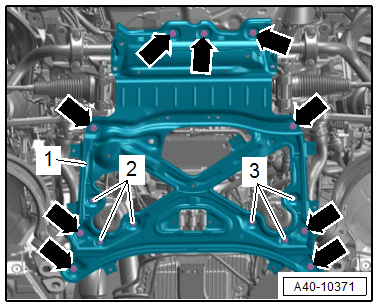

-- Remove the bolts -2 and 3-.
Improper handling increases the risk of damaging the threads in the vehicle body.
- Never use an impact wrench to loosen or tighten.
- Position the bolts by hand only and screw in the first threads.
Equipment Versions without Sway Stabilization:
-- Remove the bolts -arrows- and the subframe crossbrace -1-.
Equipment Versions with Sway Stabilization:

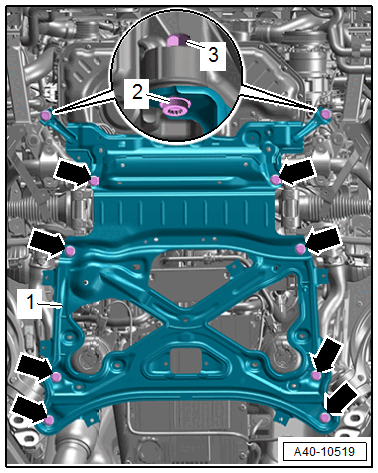

-- Remove the nut -1- and then remove the bolt -3-. Free up the bracket -2- with electrical wires.
-- Counterhold the nut -3- and remove the left and right bolt -2-.
-- Remove the bolts -arrows- and the subframe crossbrace -1-.
Improper handling increases the risk of damaging the threads in the vehicle body.
- Never use an impact wrench to loosen or tighten.
- Position the bolts by hand only and screw in the first threads.
Continuation for All Vehicles:
There is a risk of damaging the components by handling them incorrectly.
If the assembly mount, steering gear or subframe crossbrace is incorrectly installed, then resting the vehicle on its wheels can damage components.
- Never place the vehicle with loosened suspension components on its wheels.
- Never support the vehicle with loosened suspension components on the subframe or crossbrace.
