Overview - SUBFRAME, Versions Without Sway Stabilization

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

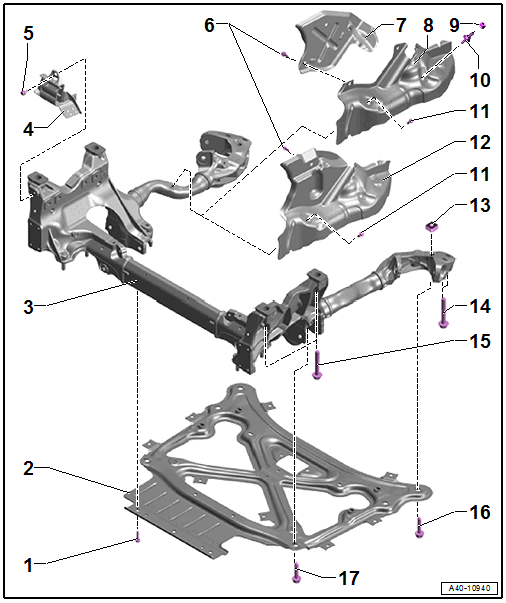

Fig 1: Exploded View Of Subframe, Versions Without Sway Stabilization

Courtesy of AUDI

Bolt
- 20 Nm
Subframe Crossbrace
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Safety Precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON SUBFRAME .
- Removing and installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
  - Perform a pre-adjustment on the subframe if it was replaced or if the crossbrace was loosened for procedures in which the subframe had been removed. Refer to Figure.
Bracket
- For the wiring harness
Bolt
- 9 Nm
Bolt/Nut
- 5 Nm
Shield Upper Section
- Removing and installing. Refer to TWO-PIECE SUBFRAME SHIELD, REMOVING AND INSTALLING .
Shield Lower Section
- Removing and installing. Refer to TWO-PIECE SUBFRAME SHIELD, REMOVING AND INSTALLING .
Nut
- For equipment versions with high-voltage system
- 5 Nm
Bolt
- 9 Nm
Bolt
- 9 Nm
Shield
- Removing and installing. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
Square Nut
- Always replace after removing
Bolt
- Always replace after removing
- Remove and tighten together with -item 15- diagonally in steps
- 130 Nm +180°
Bolt
- Always replace after removing
- Remove and tighten together with -item 14- diagonally in steps
- 115 Nm +90°
Bolt
- 42 mm long
- Always replace after removing
- 90 Nm +135°
Bolt
- 51 mm long
- Always replace after removing
- 90 Nm +90°
