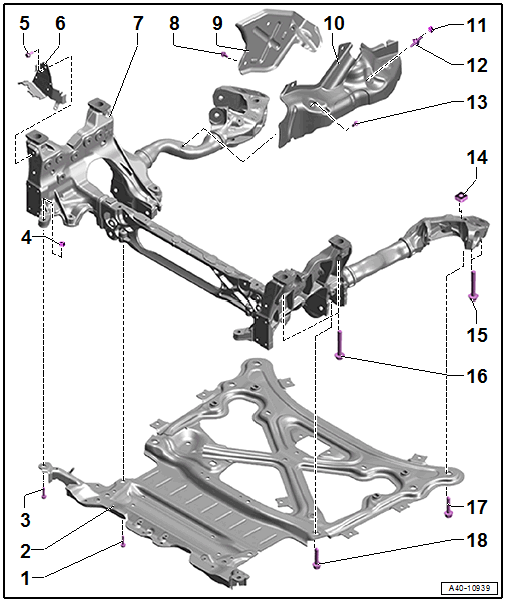

Overview - SUBFRAME, Versions With Sway Stabilization
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm
- Subframe Crossbrace
- Safety Precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON SUBFRAME .
- Removing and installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
- Bolt
- Nut
- 20 Nm
- Bolt
- 9 Nm
- Bracket
- For the wiring harness
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
- Perform a pre-adjustment on the subframe if it was replaced or if the crossbrace was loosened for procedures in which the subframe had been removed. Refer to Figure.
- Bolt
- 5 Nm
- Shield Upper Section
- Removing and installing. Refer to TWO-PIECE SUBFRAME SHIELD, REMOVING AND INSTALLING .
- Shield Lower Section
- Removing and installing. Refer to TWO-PIECE SUBFRAME SHIELD, REMOVING AND INSTALLING .
- Nut
- For equipment versions with high-voltage system
- 5 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Square Nut
- Always replace after removing
- Bolt
- Always replace after removing
- Remove and tighten together with -item 16- diagonally in steps
- 130 Nm +180°
- Bolt
- Always replace after removing
- Remove and tighten together with -item 15- diagonally in steps
- 115 Nm +90°
- Bolt
- 42 mm long
- Always replace after removing
- 90 Nm +135°
- Bolt
- 51 mm long
- Always replace after removing
- 90 Nm +90°
