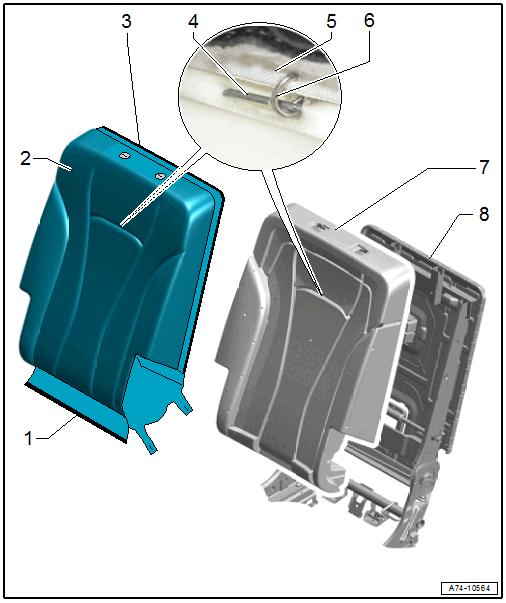

Overview - Cover And Cushion, Second Row Backrest
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
- Cover
- Check that there are no folds after installing
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, OUTER SECOND ROW BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, OUTER SECOND/THIRD ROW BACKREST .
- Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
- Cushion
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, OUTER SECOND ROW BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, OUTER SECOND/THIRD ROW BACKREST .
- Backrest Frame
