Cover And Cushion, Separating, Center Second Row Backrest: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

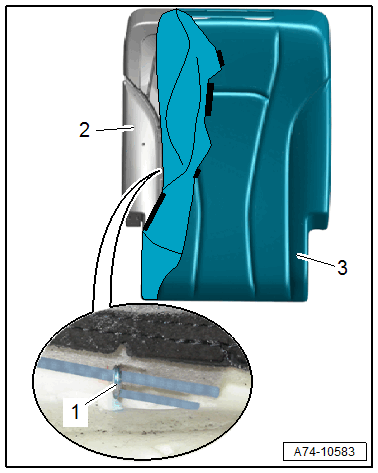

GWWA74-10583Courtesy of AUDI

-- Remove the cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, CENTER SECOND ROW BACKREST .

Vehicles without a Center Armrest

-- Pull off the cover -3- from the cushion -2- as far as possible and cut upholstery clips -1- using pliers.

Vehicles with a Center Armrest

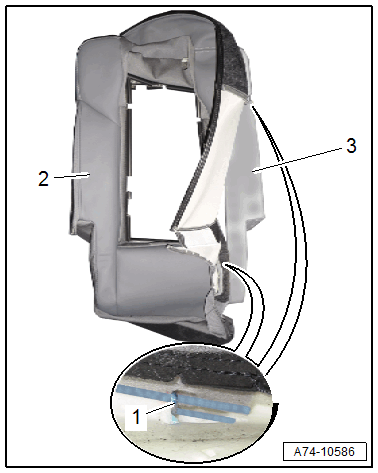

GWWA74-10586Courtesy of AUDI

-- Pull off the cover -2- from the cushion -3- as far as possible and cut upholstery clips -1- using pliers.
