Overview - Backrest Cover And Cushion

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

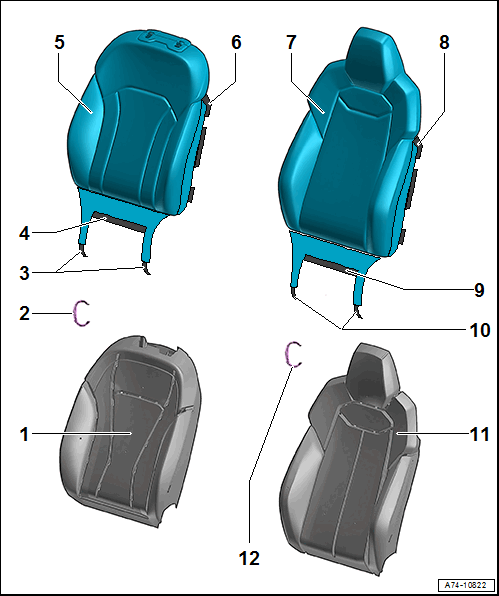

Fig 1: Backrest Cover And Cushion
GWWA74-10822Courtesy of AUDI
  1. Cushion
  2. Upholstery Clip
    • For securing the cover to the cushion
    • Replace after removing.
  3. Cover Tab
    • With hook
    • Sewn into cover
    • In the seat pan to tighten the cover
  4. Molding
    • Sewn into cover
    • For attaching the cover to the backrest frame
    • Check for proper seating
  5. Cover
  6. Molding/Rubber Bands
    • Sewn into cover
    • For attaching the cover to the backrest frame
    • Check for proper seating
  7. Cover
  8. Molding
    • Sewn into cover
    • For attaching the cover to the backrest frame
    • Check for proper seating
  9. Molding
    • Sewn into cover
    • For engaging the cover on the backrest frame
    • Check for proper seating
  10. Cover Tab
    • With hook
    • Sewn into cover
    • In the seat pan to tighten the cover
  11. Cushion
  12. Upholstery Clip
    • For securing the cover to the cushion
    • Replace after removing.
