Rear Outer Belt End Fitting, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear sill panel. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .

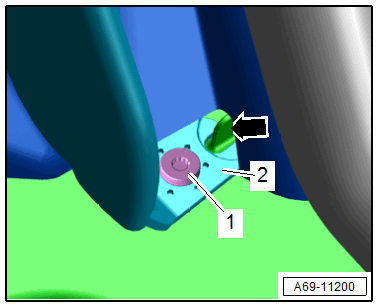

-- Remove the bolt -1- on the belt end fitting -2-.
