Passenger Occupant Detection System, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

CAUTION:

Risk of airbag deployment.

There is a risk of injury.

- Check if the airbag indicator lamp turns on or blinks.

- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.

- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.

- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.

-- Pay attention to the additional safety precautions for working on passenger occupant detection system for front passenger airbag deactivation, market-specific version. Refer to ADDITIONAL SAFETY PRECAUTIONS FOR WORKING ON PASSENGER OCCUPANT DETECTION SYSTEM FOR FRONT PASSENGER AIRBAG DEACTIVATION, MARKET-SPECIFIC VERSION .

-- Pay attention to the passenger occupant detection system deactivation after a collision, market-specific. Refer to PASSENGER OCCUPANT DETECTION SYSTEM DEACTIVATION AFTER A COLLISION, MARKET-SPECIFIC .

CAUTION:

Pyrotechnical components can deploy unintentionally.

There is a risk of injury.

- Discharge static electricity by briefly touching the door striker.

-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

Version 1:

Fig 1: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI

-- Remove the bolt -2-.

-- Disengage the control module -1- from the bracket -arrow-.

-- Disconnect the connectors -3 and 4- from the control module by pressing the release.

Version 2:

Fig 2: Passenger Occupant Detection System Control Module -J706-

Courtesy of AUDI

-- Release the control module from the catches -arrow-.

-- Disengage the control module -1- from the bracket.

-- Disconnect the connectors -2 and 3- from the control module by pressing the release.

-- Free up the wire.

-- Remove the control module for seat functions. Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING .

-- If equipped, remove the compressor from the pneumatic seat. Refer to PNEUMATIC SEAT COMPRESSOR, REMOVING AND INSTALLING .

-- Remove the bracket for the front trim. Refer to SEAT SIDE TRIM/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING .

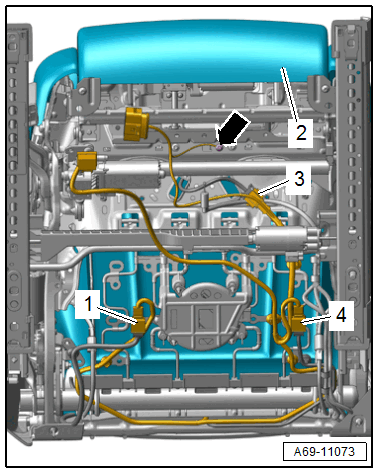

Continuation:

Courtesy of AUDI

-- Disconnect the modular wiring routing. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Open the corrugated tube and free up the wire.

-- Remove the nut -arrow- and free up the wire.

-- Disconnect the connectors -1, 3 and 4-.

-- Unclip and free up the wiring harness from the seat pan.

-- Remove seat cover -2- with seat cushion for seat pan. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

-- If necessary, separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
