Lower Steering Column Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
-- Turn the steering wheel counterclockwise 90° from the straight position.

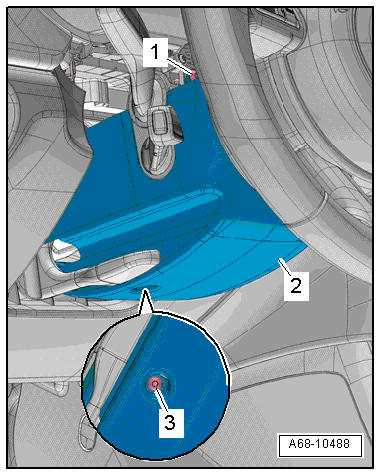

-- Remove the bolt -1-.
-- Turn the steering wheel back 180° and remove bolt on the opposite side.
TIP:
If the screw -1- is not accessible, the steering wheel must be removed to continue the procedure. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
-- Remove the screw -3- and remove the lower steering column trim panel -2-.
-- Disengage the cable holder on the steering column trim panel.
-- Disconnect the connector for the Steering Column Adjustment Switch -E167-.
